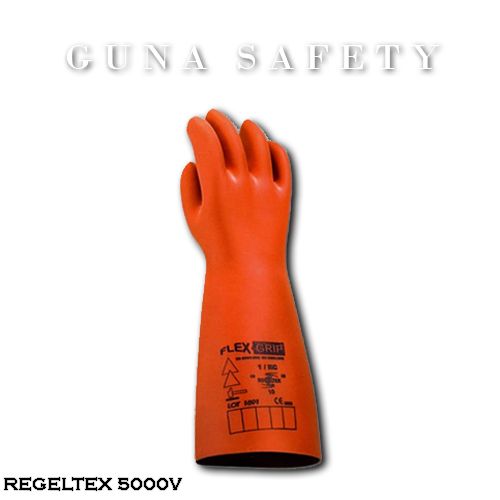

REGELTEX Gloves BT/LV Electricians Flex & Grip 5000V

REGELTEX Gloves BT/LV Electricians Flex & Grip 5000V

Code : REGELTEX
Brand : REGELTEX® (Distributor)

Description

Type: Reusable Electrical Glove

Quantity: Pair

Colour: Red

Material: Cotton Liner, Rubber

Length: 410mm

Thickness: 2.1mm

Size: M-XXL

Conforms To: EN 6093

Features/Benefits: Class 0: Maximum working voltage 5000V. Composite gloves for any live working under 5000 volts. Innovative by the selection of raw materials which grant a good suppleness, in spite of the thickness required to protect entirely against the mechanical hazards. Excellent grip in wet conditions. Cotton liner to reduce sweating. Separated, the cotton liners may be replaced, thus limiting bacteriological problems associated with residual humidity caused by sweating.

Industry: Electrical Maintenance, Installations, Wiring

Specification

Product:

Flex & Grip Composite Insulating Gloves

Features:

FLEX & GRIP® : The range of composite insulating gloves for working in full safety without leather protectors. Manufactured according to the standards (EN-60903 & IEC-60903), the range has been created in taking into consideration the expectations from users. Then, the range FLEX & GRIP® is innovative in term of products, seeing that we propose :

One type of (low voltage) composite gloves for any live working under 1 000 volts : the FLEX & GRIP® BT/LV,
The class 1, tested to 10 000 volts for a maximum use voltage of 7500 volts
Classes 2, 3 and 4 (respectively for the max. uses voltages of 17 000, 26 500 and 36000 volts), which the specification fully answer by the standards requirements (EN 60903:2003 et IEC 60903:2002)

FLEX & GRIP® is also innovative by the selection of raw materials which grant a good suppleness, in spite of the thickness required to protect entirely against the mechanical hazards. ln the same way, the chemical formula of the outside layer gives an exceptional (grip), even in wet conditions.

To reduce the effects of sweating, each pair of FLEX & GRIP® is sold with a pairs of cotton liner. Separated, the cotton liners may be replaced, thus limiting bacteriological problems associated with residual humidity caused by sweating.

Summary Table

Article Number	Class	Length Available	Categories	Thickness in mm*	Sizes Available	Color of packing
67152RG299	FLEX & GRIP® BT/LV	41 cm	RC	2.1	8-9-10-11	Red
67152RG300	FLEX & GRIP® Class 1	41 cm	RC	2.6	8-9-10-11	White
67152RG301	FLEX & GRIP® Clase 2	41 cm	RC	3.1	8-9-10-11	Yellow
67152RG302	FLEX & GRIP® Class 3	41 cm	RC	3.6	8-9-10-11	Green
67152RG303	FLEX & GRIP® Class 4	41 cm	RC	3.8	8-9-10-11	Orange

*Obtaining a category authorises an additional thickness of O.6mm
Signification of category letters : R = Resistance to acid, ozone and oil - C = Resistance to very low temperature.

Electrical Requirements (routine test and sampling test in alternating current)

Article Number	Class	Max. use voltage (in volts)	Proof test voltage (volts)	Withstand voltage (volts
67152RG299	FLEX & GRIP® BT/LV	1000	5000	10000
67152RG300	FLEX & GRIP® Class 1	7500	10000	20000
67152RG302	FLEX & GRIP® Class 2	17000	20000	30000
67152RG303	FLEX & GRIP® Class 3	26500	30000	40000
67152RG304	FLEX & GRIP® Class 4	36000	40000	50000

ln the choice of class, it is important to define the network nominal voltage which must not exceed the maximum operating voltage. For multiphase networks, the network nominal voltage is the voltage between phases.
The test voltage is the one applied to gloves during the individual routine tests.
The withstand voltage is the one applied during the validation tests after the gloves have been conditioned for 16 hours in water and after a 3-minutes test at the proof voltage.

Mechanical Requirements (Sampling Test)

Average tensile strength : ≥ 16 MPa
Average elongation at break : ≥ 600%
Puncture resistance : ≥ 18N/mm
Tension set : ≤ 15 %

Ageing Requirements (Sampling Test) - Conditioning of the gloves in an air oven at 70 ± 2 °C for 168 hours:

The elongation at break values must be at least equal to 80% of those of non conditioned gloves. The tension set must not exceed 15%. The gloves must pass the proof test voltage and withstand test voltage.

Thermal Requirements (Sampling Test)

Resistance to low temperature : conditioning of gloves for 1 hour at -25 ± 3°C. The tests are satisfactory if no tearing, breaking or cracking after folding is visible on the cuff and if the gloves pass the proof test voltage and withstand test voltage. Flame retardancy test : Application of a flame for 10 seconds at a finger tip. The test is satisfactory if, after 55 seconds, the flame has not reached the marker located 55mm away at the other end.

Special Properties (Sampling Test) Resistance to acid: Conditioning of gloves by immersion for 8 hours at 23 ± 2 °C in a sulphuric acid solution at 32° Baume • The tensile strength and elongation at break values must be at least equal to 75% of those of non-conditioned gloves. • The gloves must pass the proof test voltage and withstand test voltage. Resistance to oil: Conditioning by immersion in oil (Iiquid 102) for 24 hr at 70 ± 2 °C • The tensile strength and elongation at break values must be at least equal to 50% of those of non-conditioned gloves. • The gloves must pass the proof test voltage and withstand test voltage. Resistance to ozone: Conditioning of gloves in a chamber for 3 hours at 40 ± 2°C and in a 1 mg/m3 ozone concentration • The gloves must not present any cracking • The gloves must pass the proof test voltage and withstand test voltage. Resistance to very low temperatures: Conditioning of gloves for 24 hours at -40 ± 3°C The tests are satisfactory if no tearing, breaking or cracking after folding is visible on the cuff and if the gloves pass the proof test voltage and withstand test voltage.

Packaging
Each pair of gloves is packaged in a different coloured opaque sachet depending on its class of protection.

The following information is given on the packaging : class, size, categories, type of cuff, length, test date, manufacture batch number and validation batch number.

Marking
