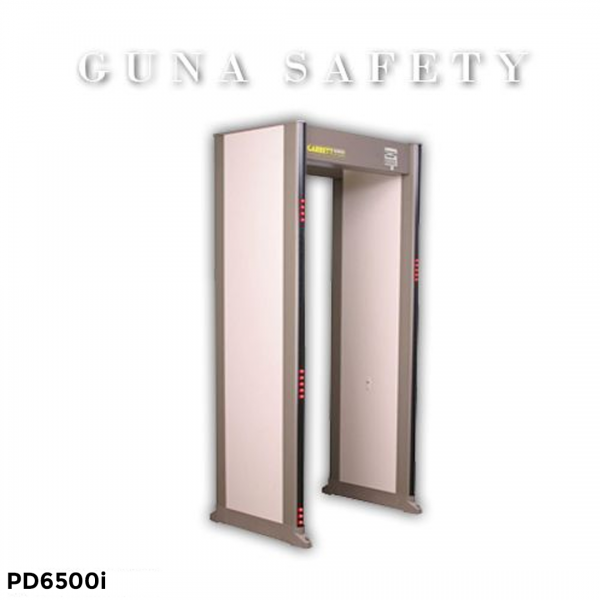

Garret Magnascanner PD 6500i

Garret Magnascanner PD 6500i

Code  : Garret
Brand : GARRET


Description

Specifications
Temperatures

Operating: -4° F (-20° C) to +122° F (50° C)
Humidity to 95% non condensing
Storage: -40° F (-40° C) to 158° F (70° C)

Power

Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.

Weatherproofing / Foreign Object Protection Standards

Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529. *IP 65 optional.

Target Pinpointing Lights

Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i.

Programs

More than Twenty (20) independent programs designed to meet all installation specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports.

Multi-Unit and Multi-Brand Compatability

2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-throughs.

Interference Suppression

Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources.

Directional Counter

Counter tracks the number of patrons that have passed through the
detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional).

Random Alarm Feature

Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.

Alarms

Audible tone and volume adjustable. Bright LED visual alarm.

Pacing Lights

International symbols located at entrance.

Tamper-Proof

All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.

Control Outputs

Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

Construction

Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
